High Frequency Eccentric Concrete Vibrator
ENAR motors DINGO,LOPU & FOX available for matching
| Weight | 18kgs |
|---|---|
| Length | 0-6meters |
| Frequency | 18000rpm |

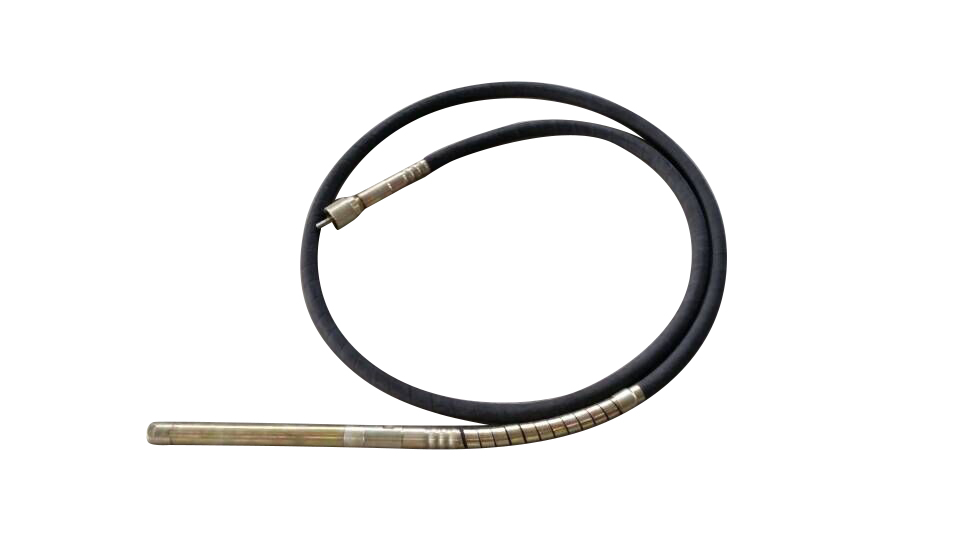

Eccentric High Frequency Internal Concrete Vibrator.
***18000rpm suitable for ENAR concrete vibrator DINGO,LOPU & FOX motors
| Vibrator Head | Item No. | ECV28 | ECV38 | ECV45 |
| Diameter | 28mm | 38mm | 45mm | |
| Length | 400mm | 400mm | 400mm | |
| Vibrating frequency | 18000rpm | 18000rpm | 18000rpm | |
| Vibration Amplitude | 1.4mm | 1.54mm | 1.62mm | |
| Bearing Qty | 6pcs | 6pcs | 6pcs | |
| Shaft and Hose | Outside Dia.of hose | 27mm | 30mm | 30mm |
| Inner Dia.of hose | 12mm | 15mm | 15mm | |
| Diameter of shaft | 8mm | 10mm | 10mm | |
| Length | 1m.1.5m.2m.3m.4m.5m.6m | |||
