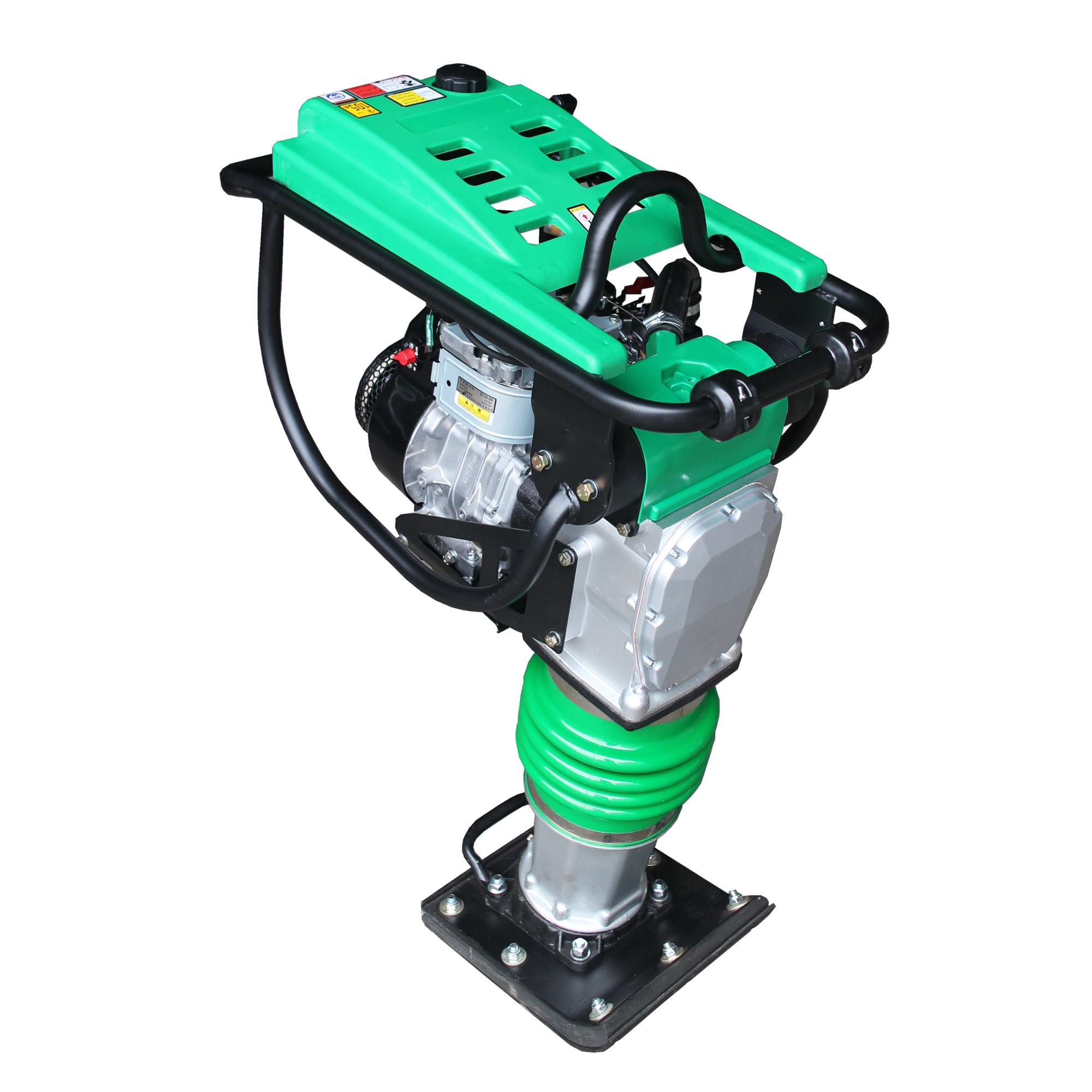

Tamping Rammer Honda GX160
Additional information
| Model No. | GR7H16M |
|---|---|
| Engine | Honda GX160 |
| Stroke | 4-stroke |
| Max. Rated power | 4.0kw @ 3600rpm |
| Displacement | 161cc |
| Fuel consumption | 1.0 L/h |
| Fuel tank capacity | 3.0 L |
| Weight | 78 kg |
| Baseplate size | 280mm x 330 mm |
| Overall dimension | 675mm x 350mm x 970 mm |
| Travel speed | 240 m/min |
| Impact force | 18kn |
| Impact frequency | 690 1/min |
| Max.Area capacity | 118 ㎡/h |
Product Details:
-Bellows quality polyurethane ribbed.
–Powered by original Honda GX160 for rammer economical model
–Throttle assembly,heavy duty model design for longer services.
-Fuel tank complete kits is designed by quality plastic model well-sealed.
-Baseplate with net hole design for compaction absorbing and wood plate for anti-vibrations.
-Cast aluminium gearbox,and camshaft,camwheels,springs at quenching and tempering heat treatment.
***12months quality warranty
